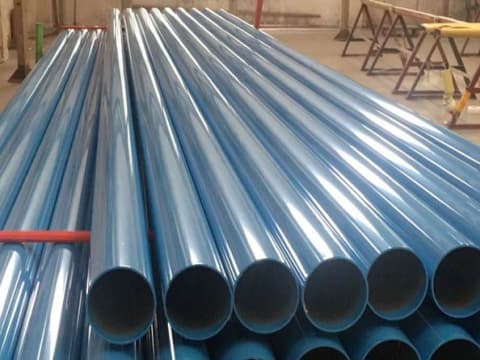

PVC Coated Rigid Conduit, also widely known as PVC-coated electrical conduit or PVC-coated galvanized conduit, is a type of rigid electrical conduit featuring a galvanized steel base pipe with a continuous protective PVC layer thermally bonded to its exterior. Its primary characteristics include the mechanical strength of steel combined with the corrosion resistance and insulating properties of PVC.
Glory Steel is a professional manufacturer and supplier of PVC-coated electrical conduits. Our products feature an outer layer of modified PVC seamlessly bonded to the steel; they offer a service life of over 30 years and are available with custom-length cutting, bending, and threading services, as well as a full range of compatible fittings.
Product Specifications
| Item | PVC Coated Rigid Conduit / PVC Coated Rigid Metal Conduit |
| Standards | IEC 61386-21, NEMA RN-1, UL 6, GB/T 14823 |
| Base Material | Hot-dip galvanized steel: Q235B / ASTM A53 Gr.B / S235JR / SS400 / BS 1387 |
| Outer Coating | Modified PVC (UV-resistant & flame-retardant formula) |
| PVC Coating Thickness | 0.3mm ~ 1.5mm |
| Inner Surface | Polyurethane coating (premium) / bare galvanized steel (economy) |
| Protection Grade | IP67 |
| Size Range | 1/2” ~ 6” (16mm ~ 150mm), SCH40 standard wall |
| Wall Thickness | 2.77mm ~ 6.02mm (SCH40), customized thickness available |
| Length | 1m ~ 12m (customizable) |

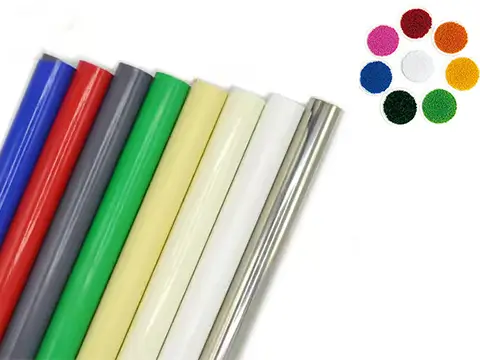

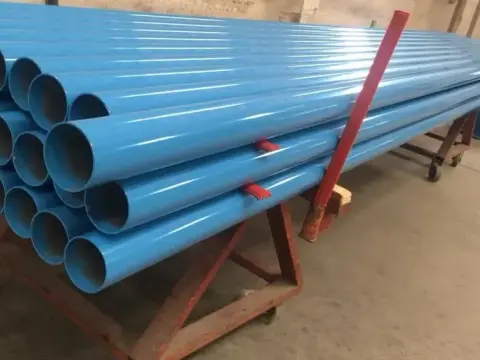

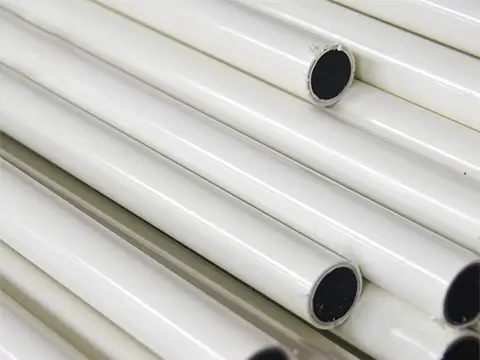

| Color | Black, gray, white, orange, red, green, blue |
| MOQ | 10 Tons |
Core Advantages
- Superior Corrosion Resistance: The dense outer PVC coating fully isolates the steel substrate from acid, alkali, salt, moisture and soil corrosion, making the PVC coated rigid conduit ideal for coastal, chemical and underground environments.
- High Electrical Safety: Excellent overall insulation performance with volume resistivity ≥ 1×10¹³ Ω·cm, effectively preventing electric leakage and short circuit for long-term electrical wiring systems.
- Excellent Mechanical Performance: The heavy-duty galvanized steel pipe provides strong compression and impact resistance, while the outer PVC layer buffers external force to avoid extrusion and surface damage.

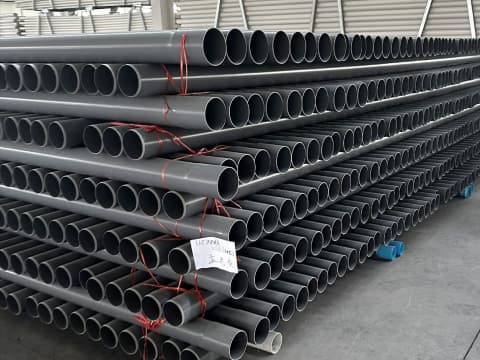

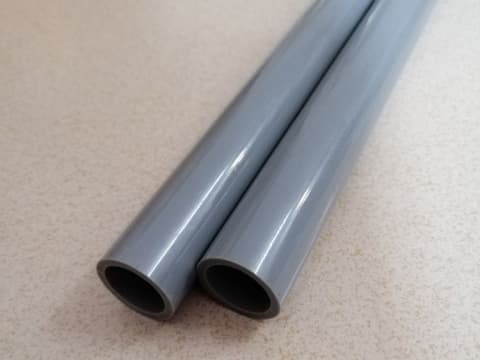

- Flame Retardant & Weather Resistant: Optional flame-retardant PVC formula. Black PVC-coated rigid conduit is specially UV-proof for outdoor exposure without cracking or powdering. Gray conduit is widely used for indoor building and buried installation.

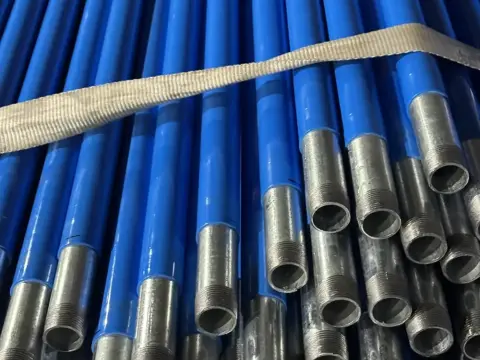

- Easy On-Site Fabrication: Our PVC coated rigid steel conduit supports professional field bending, cutting and threading without peeling or damaging the PVC coating, ensuring convenient and fast construction.
SCH40 Dimension & Weight Table
We supply full standard SCH40 sizes of PVC-coated rigid conduit ranging from 1/2 inch to 4 inch, with stable outer diameter, precise wall thickness and uniform coating layer.
| Nominal Size | DN | OD | SCH40 Wall Thickness | SCH40 Weight per Meter |
|---|---|---|---|---|
| 1/2 inch | DN15 | 21.3mm | 2.77mm | 1.31kg/m |
| 3/4 inch | DN20 | 26.7mm | 2.87mm | 1.68kg/m |
| 1 inch | DN25 | 33.7mm | 3.38mm | 2.50kg/m |

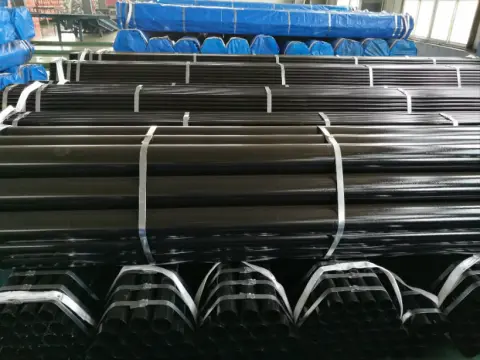

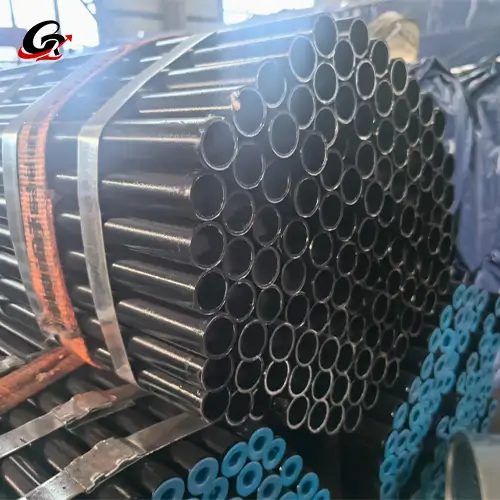

| 2 inch | DN50 | 60.3mm | 3.91mm | 5.44kg/m |
| 3 inch | DN80 | 88.9mm | 5.49mm | 11.29kg/m |
| 4 inch | DN100 | 114.3mm | 6.02mm | 16.11kg/m |
Please contact us for quotes on other sizes (1-1/4″, 1-1/2″, 2-1/2″, 3-1/2″, 5″, 6″).
Mechanical Properties
| Material Grade | Standard | Tensile Strength | Yield Strength |
|---|---|---|---|
| Q235B | GB/T 3091 | 375~500 MPa | ≥235 MPa |
| ASTM A53 Gr.B | ASTM A53 | ≥415 MPa | ≥240 MPa |
| S235JR | EN 10255 | 360~510 MPa | ≥235 MPa |
| SS400 | JIS G3444 | ≥400 MPa | ≥245 MPa |

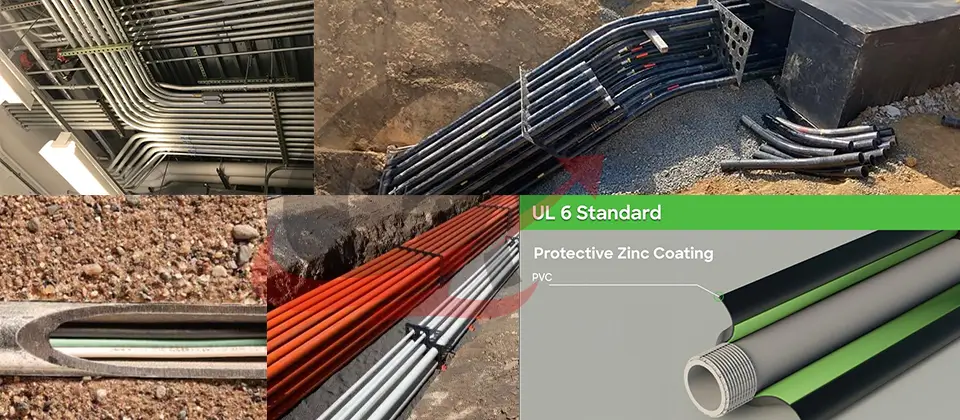

Application Fields
- Industrial Projects: Chemical plants, sewage treatment plants, electroplating workshops, corrosive workshops, petrochemical facilities wiring systems.
- Municipal Infrastructure: Utility tunnels, coastal municipal projects, subway cable protection, street lamps, billboards and traffic signal pipelines.
- Commercial Buildings: Shopping malls, underground garages, subways, tunnels, utility corridors, cold storage warehouses electrical wiring.
- Outdoor Engineering: Photovoltaic power stations, coastal high salt-fog docks, agricultural greenhouse outdoor pipelines.
Production Process
Hot-dip galvanized steel pipe base → Surface treatment (degreasing & derusting) → Preheating → PVC fluidized bed dipping / extrusion coating → Curing & cooling → Sizing → Inspection → Custom cutting → Packaging
Two Main Coating Technologies
- Hot-dip coating (dip coating): Immerse the preheated steel pipe into the fluidized bed of PVC powder. The plastic coating is uniform with strong adhesion, making it suitable for both internal and external plastic coating.
- Extrusion coating: Coating the surface of the steel pipe with PVC using an extruder.High production efficiency, suitable for external coating.
Matching Fittings
We supply full sets of matching coated fittings for PVC coated rigid conduit to ensure perfect installation and consistent anti-corrosion performance for the whole pipeline system.
| Fitting Type | Description |
|---|---|
| PVC Coated Elbow | 90°, 45° and other angles |
| PVC Coated Tee | Equal diameter & reducing type |
| PVC Coated Coupling | Threaded connection & press fitting connection |
| PVC Coated Junction Box | For electrical wiring connection |
| PVC Coated Pipe Clamp | For pipe fixing and installation |
FAQs
Q1: What is the difference between PVC coated rigid conduit and ordinary galvanized conduit?

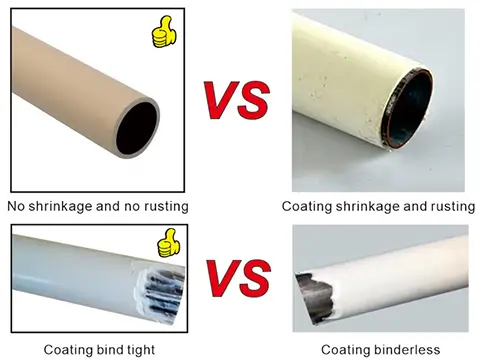

A: Ordinary galvanized pipes rely only on zinc layer for corrosion protection and are easy to corrode in humid, acidic and alkaline environments. PVC coated rigid conduit adds a dense outer PVC protective layer, greatly improving corrosion resistance and service life. Our performance is equivalent to well-known branded pvc coated rigid conduit such as Ocal and Robroy.
Q2: Are both inner and outer walls covered with PVC?
A: The outer wall adopts thick protective PVC layer. The premium grade has an ultra-thin polyurethane inner coating (not PVC). The economical grade retains the original galvanized inner wall without plastic coating.
Q3: Temperature resistance of PVC coating?
A: Working temperature range: -20°C ~ 70°C. Special customized PVC formula is available for higher temperature requirements.
Q4: Can you provide material certificates?
A: MTC certificates (EN 10204 3.1/3.2) are provided with goods. SGS, BV and other third-party inspections are acceptable.
Q5: What processing services are available?
A: Custom length cutting, threading, pipe bending, pipe end finishing, and full set of matching coated fittings supply for all sizes of PVC coated rigid conduit.
Why Choose Glory Steel
- Complete Specifications & Colors: Full-size SCH40 PVC-coated rigid conduit in black and gray colors, 6m standard length in stock.
- International Standard Compliance: Strictly compliant with IEC 61386-21 and NEMA RN-1 rigid conduit standards to meet global project acceptance requirements.
- Strict Quality Inspection: Full-process sampling inspection for PVC adhesion, salt spray, insulation and compression resistance.
- One-stop Supporting Service: Full range of matching coated fittings and connectors available, so you can source everything from one supplier.
- Stable Delivery: 10–18 days lead time for regular sizes; full container export supported.
Get your customized solution and free samples within 10 hours.
We support global shipping (FOB, CIF, etc.) and offer comprehensive project support.
Glory Steel Plant, located in Tianjin, China, is an ISO 9001, ISO 14001, and CE‑certified factory with an annual output of 100,000 tons. Specializes in manufacturing various coated steel pipes, including PVC‑coated conduit, FBE epoxy‑coated steel pipe, powder epoxy-coated pipe, painted steel pipe, and 3PE coated steel pipe. Including red, blue, green, yellow, and black colors. With stable quality and comprehensive service, we export to over 120 countries.
