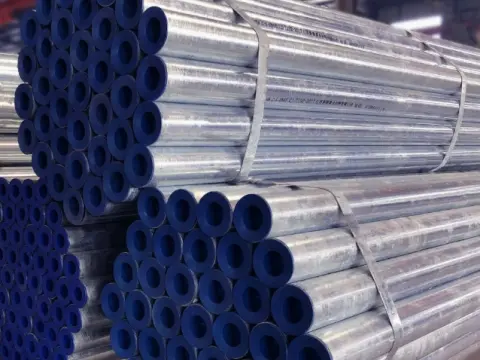

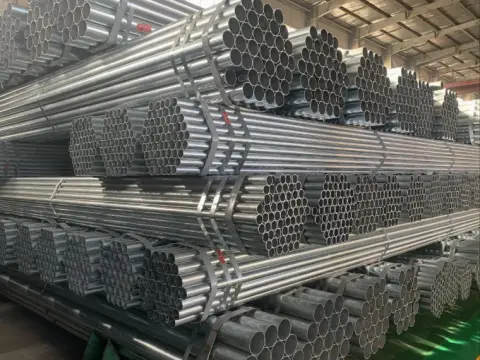

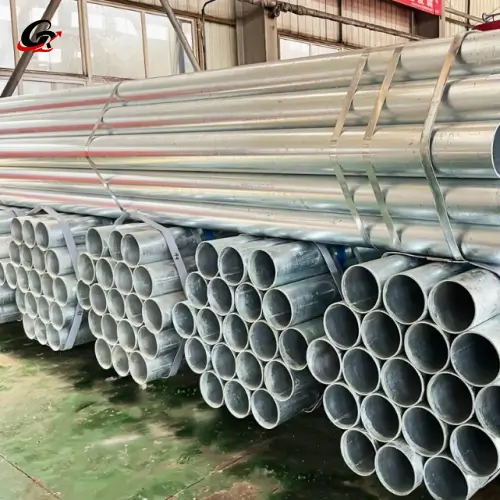

1-1/2 inch galvanized pipe, also known as 1.5-inch galvanized pipe, is a steel pipe made of high-quality low-carbon steel substrate with hot-dip galvanized inner and outer walls. It combines the rigidity of black iron pipe and the oxidation resistance of zinc coating, and welded pipe is the mainstream manufacturing process.
Glory Steel is a premium manufacturer and supplier of 1-1/2 inch galvanized pipes, offering customized wall thickness, length and zinc coating thickness.
Specifications
| Material | Q235B, Grade A / Grade B |
| NPS | DN40 |
| OD | 48.3 mm |
| Length | 6 meters |
| SCH | 2.2mm~6.0mm, commonly Sch 40/Sch 80 |
| Pipe End | Threaded Both Ends (TBE) or Plain Ends |
| Thread Standard | American NPT, British Taper Pipe Thread BSPT |
| Zinc Layer | Z30-Z275 g/㎡ |
| Execution Standards | ASTM A53, ASTM A733, GB/T 3091-2015, NSF 61, BS 1387, ISO 1461 |
Product Types
- Type E: Electric resistance welded pipe, mainstream specification in the market with outstanding cost performance.
- Type F: Furnace-welded pipe, applied for general low-pressure scenarios.
- Type S: Seamless pipe with the highest pressure bearing capacity and a higher cost, used for special environments.
Advantages
- Rust and weather resistance: Its anti-oxidation service life is more than 3 times that of black iron pipe, with a service life of several decades, suitable for both indoor and outdoor use. The zinc coating features strong adhesion and requires infrequent maintenance.
- Excellent pressure resistance: Superior mechanical properties; higher wall thickness brings greater pressure bearing capacity. Sch 40/Sch 80 grades are available per project requirements to withstand heavy impact.
- High processing adaptability: Supports threading, cutting and bending, and can be directly matched with standard pipe fittings (elbows, tees, couplings).
- OEM/ODM service: Custom non-standard wall thickness, non-standard length and private labeling are acceptable. The pipe boasts smooth inner and outer walls with uniform and firm zinc coating.
Applications
- Water supply, drainage and gas transportation: Water conveying pipes for residential buildings and shopping malls, indoor gas risers.
- Fire protection and ventilation: Fire hydrant pipes, sprinkler pipes and exhaust conveying pipes in underground parking lots.
- Industrial pipelines: Standard medium and low-pressure pipelines for neutral liquid and gas transportation inside factories, such as condensate pipes.

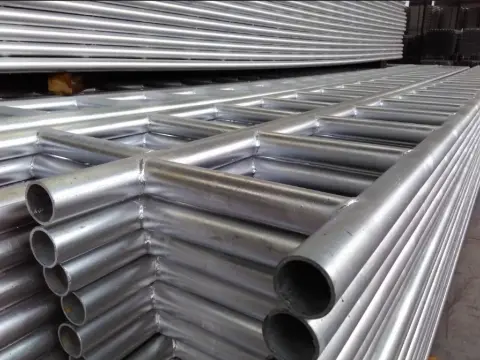

- Building structures: Cattle fence panels, frame structures of prefabricated houses, and handrails for stair railings.
Hot-Dip Galvanizing Process
Our 1.5-inch galvanized steel pipes are manufactured via high-temperature continuous hot-dip galvanizing process. After pickling and flux treatment, the steel pipes are immersed in molten zinc liquid at 450℃ to form dual protective layers consisting of zinc-iron alloy layer and pure zinc layer, delivering far stronger adhesion and corrosion resistance compared with electro-galvanized (cold galvanized) products.
1 1/2 GI Pipe Price
Prices of gi pipe 1 – 1 /2” fluctuate daily based on raw material costs, shipping rates, and exchange rates.
Glory Steel offers direct-from-factory pricing with no middleman markups and supports all trade terms, including FOB, CIF, and CFR.
We provide sample services. Please send us your procurement list, and we will reply with a detailed quotation within 12 hours.
Why Choose Glory Steel
- Full-process quality inspection: Self-produced steel coils and high-frequency longitudinal welding. Full inspection of zinc coating thickness, wall thickness and straightness for each batch to guarantee consistent delivery quality.
- One-stop supporting processing: Custom cutting, NPT/BSPT threading and pipe end grooving & protection can be completed to reduce your secondary processing procedures.
- Guaranteed delivery lead time: Annual production capacity of 100,000 tons, regular sizes in stock, customized orders shipped within 10–18 days.
- Professional export service: Multilingual sales team provides full follow-up from production and inspection to sea container loading, delivering complete export solutions.
Glory Steel factory, located in Tianjin, China, is an ISO 9001, ISO 14001, and CE certified factory with an annual output of 100,000 tons. We specialize in manufacturing 1-inch, 2-inch, and 4-inch galvanized pipes, including round, square, and oval pipes. With our high-quality products and services, we export to over 120 countries.
