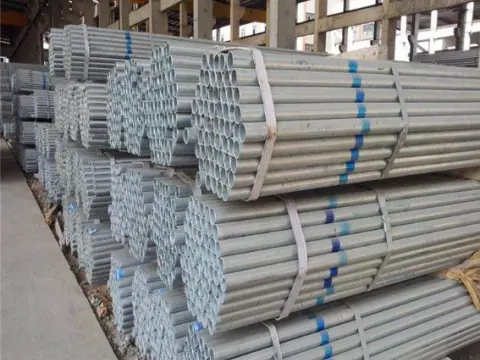

Galvanized fence pipe is circular structural welded tube made from carbon steel substrate. It is specially used for fence posts, guardrail posts, cross rails and fence corner posts. Both inner and outer surfaces are zinc‑coated for excellent anti‑corrosion performance. Posts buried in soil can remain rust‑free for many years.

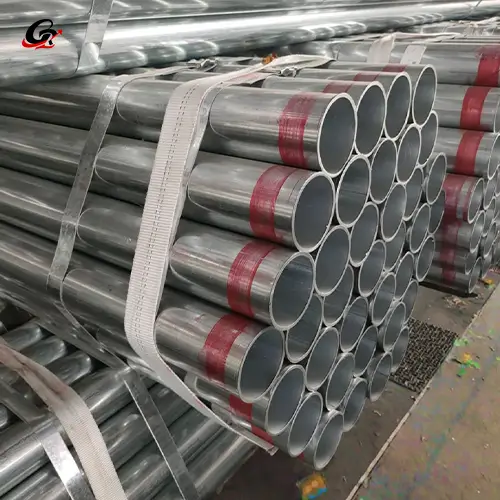

Glory Steel is a professional manufacturer & supplier of galvanized fence pipes. We supply hot‑dip galvanized and pre‑galvanized fence pipes, compatible with most zinc‑steel guardrail systems. International standards are complied. Custom cut‑to‑length and punching services are available.
Specifications
| Item | Galvanized Fence Pipe |
| Standards | ASTM F1083, ASTM A53, GB/T 3091, BS 1387, EN 10255, AS/NZS 1074 |
| Material Grade | Q195, Q235B, ASTM A53 Gr.B, S235JR, STK400 |
| OD Range | 1‑3/8″ (34.9mm) ~ 6‑5/8″ (168.3mm) |
| Wall Thickness | 1.0‑3.0 mm |
| Length | 1.0 ~ 6.0 m |
| MOQ | 10 MT |

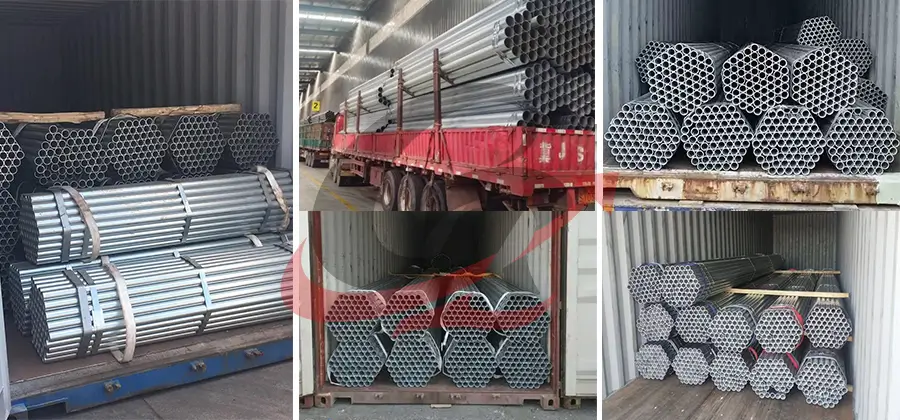

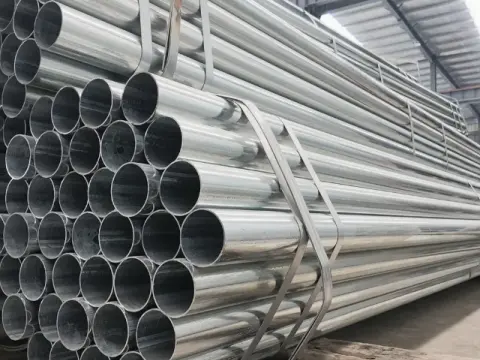

| Packing | Hexagonal bundles with steel straps; pipe caps optional |
| Certificates | MTC (EN 10204 3.1 / 3.2); third‑party inspection by SGS, BV acceptable |
Key Advantages
- Long‑term anti‑corrosion: Hot‑dip galvanizing delivers thick zinc coating with firm alloy layer. Service life over 20 years under normal outdoor conditions.
- High structural strength: Carbon‑steel base provides good mechanical performance, bending resistance and impact resistance for stable support.
- Maintenance‑free: Silvery metallic zinc surface. No additional powder coating or anti‑rust paint required; self‑cleaning by rainwater.
- Universal standard dimensions: NPS‑compliant outer diameter, compatible with standard tees, elbows, couplings for fast installation.
Applications
- Farm & livestock fencing: Posts for grassland mesh, farm enclosures and livestock pens.
- Municipal road guardrails: Posts for temporary road barriers, tree support stakes and highway fence brackets.
- Industrial & commercial fencing: Cross rails for factory partitions, sliding gate rails, side posts for automatic gates.
- Public & school fencing: Posts for airport, prison perimeter fences and powder‑coated basketball court enclosures.
Common Sizes and Imperial Conversion
| Nominal Size (Inch) | Actual OD (mm) | Common WT (mm) | Typical Application |
|---|---|---|---|

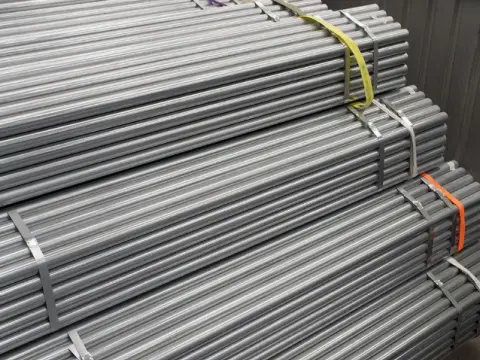

| 1-3/8″ | 34.9 | 1.5 / 2.0 | Chain link fence posts |
| 1-1/2″ | 42.2 (approx.) | 1.5 / 2.0 | Fence rails, gate frames |
| 1-5/8″ | 42.2 | 1.5 / 2.0 | Highway guardrails |
| 1-3/4″ | 48.3 (approx.) | 2.0 / 2.5 | Heavy-duty fence posts |
| 2″ | 60.3 (approx.) | 2.0 / 2.5 / 3.0 | Ranch fencing, electric gate posts |
| 2-3/8″ | 60.3 | 2.0 / 2.5 / 3.0 | Most common fence post |
Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| Q195 | 315~430 | ≥195 | ≥33 |
| Q235B | 375~500 | ≥235 | ≥26 |
| ASTM A53 Gr.B | ≥415 | ≥240 | ≥22 |
| S235JR | 360~510 | ≥235 | ≥26 |
| STK400 | ≥400 | ≥245 | ≥23 |
| ASTM F1083 Gr.1 | ≥310 | ≥205 | ≥25 |
Note: Actual values subject to Mill Test Certificate.
Production & Inspection

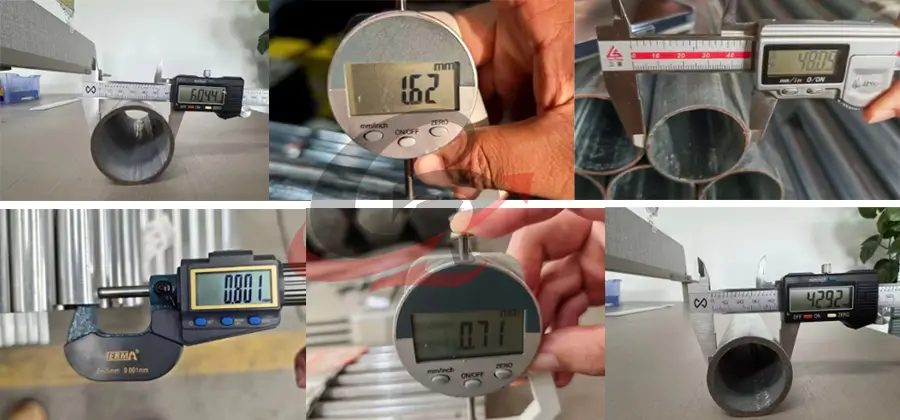

All galvanized fence pipes undergo in‑house inspection for appearance, dimensional tolerance and zinc‑coating thickness. Zero missed‑galvanizing or peeling defects. Third‑party inspection by SGS / BV is acceptable. Services include square cut ends, deburring and protective pipe caps.
1. Production steps
Black tube inspection → Degreasing → Rinsing → Pickling → Flux treatment → Drying → Hot‑dip galvanizing → Cooling → Passivation → Full inspection → Bundling & labeling.
2. Processing Services
Glory Steel offers custom processing for fence pipes:
- Cut‑to‑length: Precision cutting to your required sizes.
- Punching: Round/square/oval holes per your fence drawing.
- Grooving: Roll‑grooving for socket connection.
- Bending: Arc bending upon request.
- Welded assembly: Welded fence frames & component fabrication.
- Powder coating: Colored finishing over galvanized base, full RAL color options available.
Why Choose Glory Steel?
- Reliable Quality: In‑house hot‑rolled steel strip & 2 welded pipe production lines. Hot‑dip galvanizing with salt‑spray testing, consistent dimensional accuracy.
- Direct factory price: No intermediate traders. Cost advantages for bulk orders.
- Flexible customization: Cut length 1‑12m; customizable zinc coating & surface finish. Fully compliant with international standards for engineering projects.
- One‑stop export service: Multilingual sales team covers quotation, production tracking, packing and full export documents. Door‑to‑door service available, small trial orders welcomed.
FAQ
Q: Can you provide material certificates?
A: MTC (EN 10204 3.1/3.2) is supplied with goods. Third‑party inspection by SGS, BV is available.
Q: What is the standard length for fence pipe?
A: Standard length is 6m (20ft). Custom length from 1‑12m is acceptable.
Q: Will galvanizing be damaged after welding?
A: Zinc coating will burn off at weld seams. We recommend repairing welds with zinc‑rich paint to restore corrosion resistance.
Q: Can you supply color coated fence pipes?
A: Yes. Powder coating can be applied over galvanized surface, full RAL color range available. Popular colors: green, black, red, yellow.
Glory Steel Plant, located in Tianjin, China, is an ISO 9001, ISO 14001, and CE-certified factory with an annual output of 100,000 tons. We specialize in manufacturing HR/CR coils, strips, sheets, as well as channel steel, I-beams, and reinforcing bars. With our high-quality products and services, we export to over 120 countries.
